Adastra Call Station for RM244V Mixer Amplifier

Code: 953.146UK

£159.00
Secure yours with a deposit of
|
|

Item in Stock | Next Day Delivery | Collect in store

Product Details
Specifications
Product Reviews

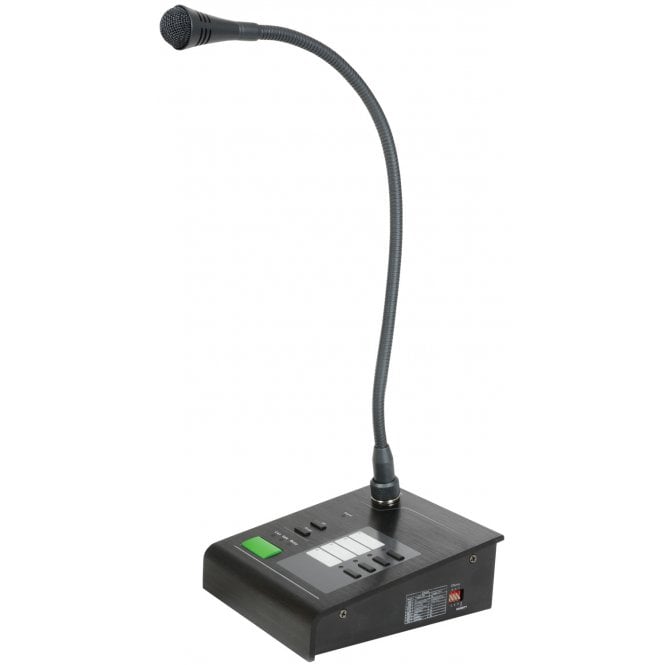

Paging microphone with call station base for use with the RM244V mixer-amp. Connected via RJ45 for both signal and power to simplify wiring. Zone assign buttons enable calling to one or all zones. Pressing the page button mutes all audio playback and plays one of 8 selectable chimes, opening the microphone to the selected zone(s). Pressing the reset button mutes the microphone and resumes background music playback to all zones. This system offers 4-zone paging without the additional cost of using a quad amplifier.

For use with the RM244V amplifier (953.144UK)

Assignable to individual or all 4 zones

8 selectable chime settings

3.5mm aux input

Up to 1km remote wiring over CAT5

Supplied with 1m RJ45 patch lead

Specification

Power supply 24Vdc, 500mA from RJ45 or optional adaptor

Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor

Capsule Back electret condenser

Polar pattern Cardioid

Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in

Frequency response : -3dB 150Hz - 22kHz

Input level Mic: -46dBV, Aux: -10dBV

Input impedance Mic: 600 Ohms, Aux: 50k Ohms

Output level 10dBV

Output impedance : balanced 600 Ohms

S/N ratio -60dB (all channels selected)

Interface RS-485 control

Zone assign 4 zones or all selectable

Dimensions 460 x 140 x 115mm

Weight 670g
