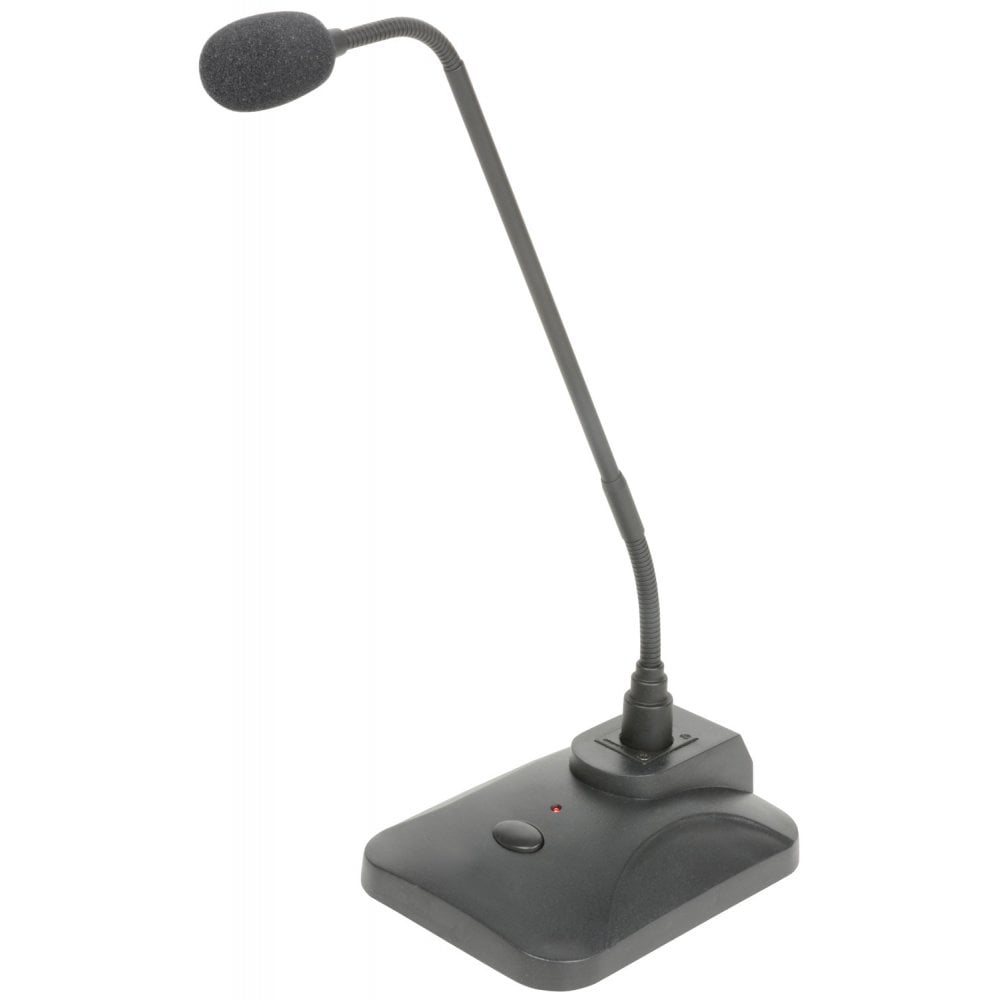

A gooseneck condenser microphone with selectable chime function. Microphone connection to the base is via XLR and output is on XLR at the rear. Power is provided to the microphone capsule either from 2 x AA batteries in the base or from 5Vdc via the supplied USB lead. The base is also home to a latching paging button on top and a chime section on the underside. DIP switches offer a selection of chime settings, governed by a rotary volume control. Designed for remote paging and announcements.
10 selectable chime settings
Supplied with 2 x AA batteries and USB power lead
Supplied with XLR to 6.3mm jack lead
ower supply 5Vdc (USB lead supplied) or 2 x AA batteries (optional)
Connection XLR output, DC5521 jack (power)
Lead length XLR-jack 2.2m, USB 1.0m
Capsule Electret condenser
Polar pattern Cardioid
Sensitivity -46dB (±2dB)
Frequency response 50Hz - 20kHz
Impedance 680 Ohms
Chime function 10 DIP switch settings (including off)
