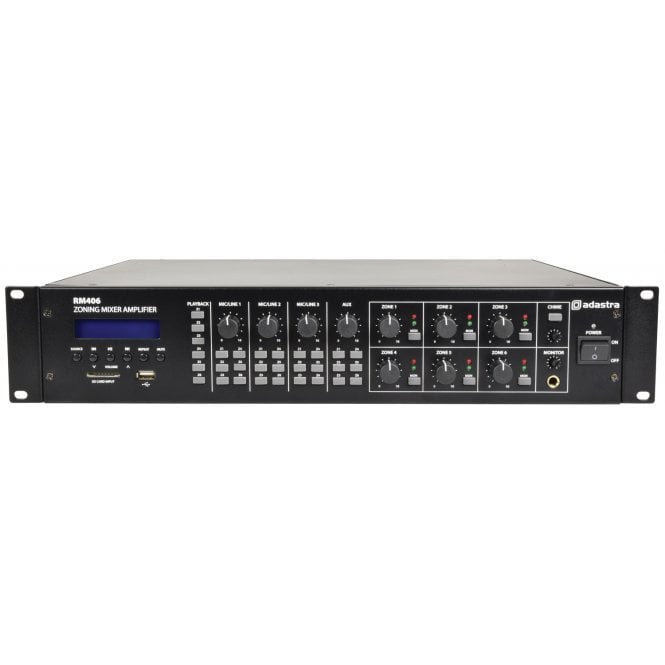

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.
Integral USB/SD/FM audio player
Internal Bluetooth receiver
100V or 4/8 Ohms operation
6 independent output zones
3 mic/line and 1 auxiliary input
Mic priority and chime functions
Switchable +20V phantom power
24V mute contacts
Monitor headphones output
Code:
Power supply170-264Vac, 50Hz (IEC)
Power output6 x 40W rms
Amplifier : constructionClass D + transformer outputs
Audio sourceUSB/SD/FM/BT audio player
Inputs3 x mic/line (XLR/jack), auxiliary 2 x RCA
Zone outputs: line6 x RCA (mono)
Zone outputs: speaker6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
Phantom power+20V switchable to each XLR
Monitor outputs6.3mm stereo phones, 2 x RCA line
Mute+24V relay contacts
THD<0.76% @ 1kHz
Input impedance1k Ohms (mic/line)
Input sensitivity-11dB (line), -46dB (mic)
SNR84dB (line), 82dB (mic)
Bluetooth version2.0
Frequency response100Hz - 24kHz
Dimensions433 x 89 x 403mm
Weight11kg
