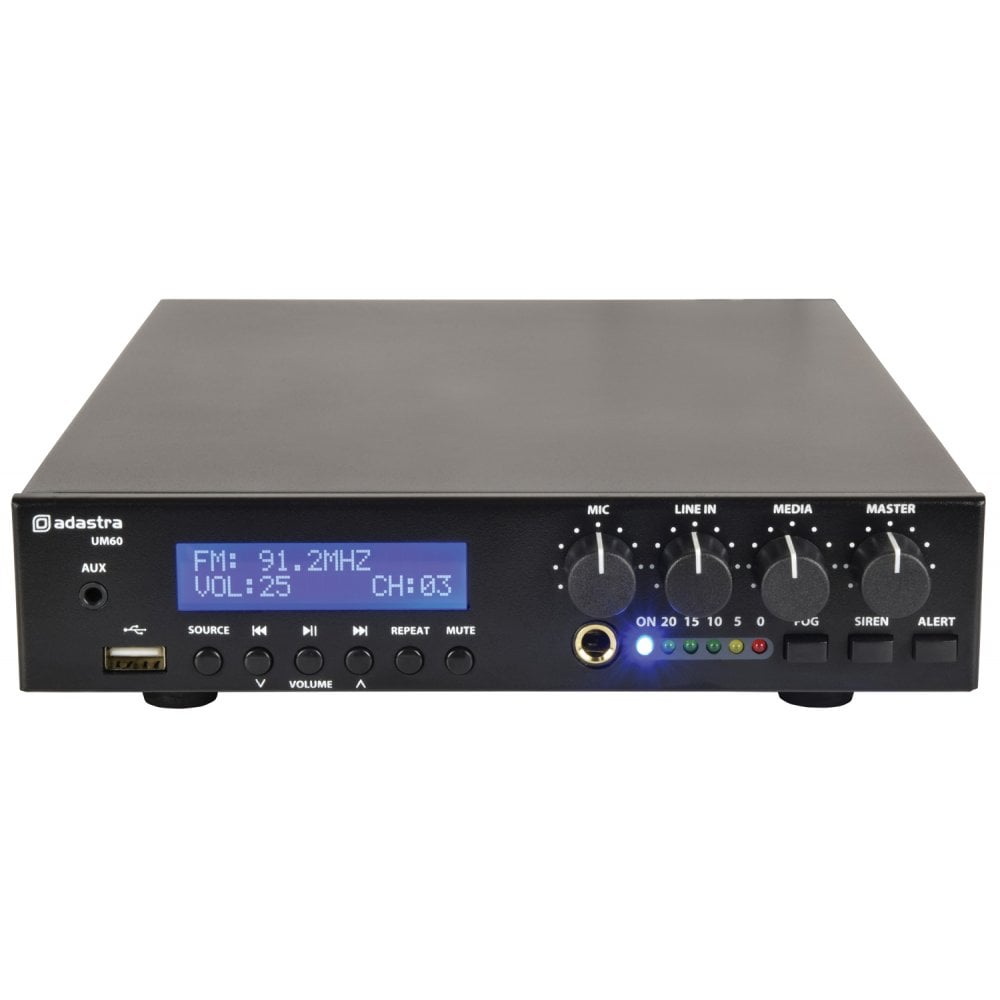

Adastra UM Series Ultra Compact Mixer-Amplifiers 100V

Code: 953.176UK
  • From £139.00
Item in Stock   |   Next Day Delivery | Collect in store
Loading...

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.



Ultra compact form factor

Efficient class D amplifier design

Internal USB/FM/BT audio player

100V line or 8 Ohms operation

Specification : Common
Power supply170-264Vac, 50Hz (IEC)
Amplifier : constructionClass D + transformer output
Audio sourceInternal USB/FM/BT player
Inputs1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output2 x RCA (mono)
Speaker outputsScrew terminals - 100V / 8 Ohms / Com
DC power24Vdc screw terminals
Mute24V relay contacts
THD<0.4% @ 1kHz
Input impedance1k Ohms (mic/line)
Input sensitivity-10dB (line), -45dB (mic)
SNR80dB (line), 75dB (mic)
Frequency response100Hz - 18kHz

SPECIFICATION VERSIONS:

Output power : rms 30W 60W 90W (80W @ 24Vdc power)
Alarm output N/A Fog, siren & alert generator Fog, siren & alert generator
Dimensions 249 x 210 x 44mm 269 x 210 x 44mm 330 x 210 x 44mm
Weight 2.35kg 2.47kg 2.59kg
