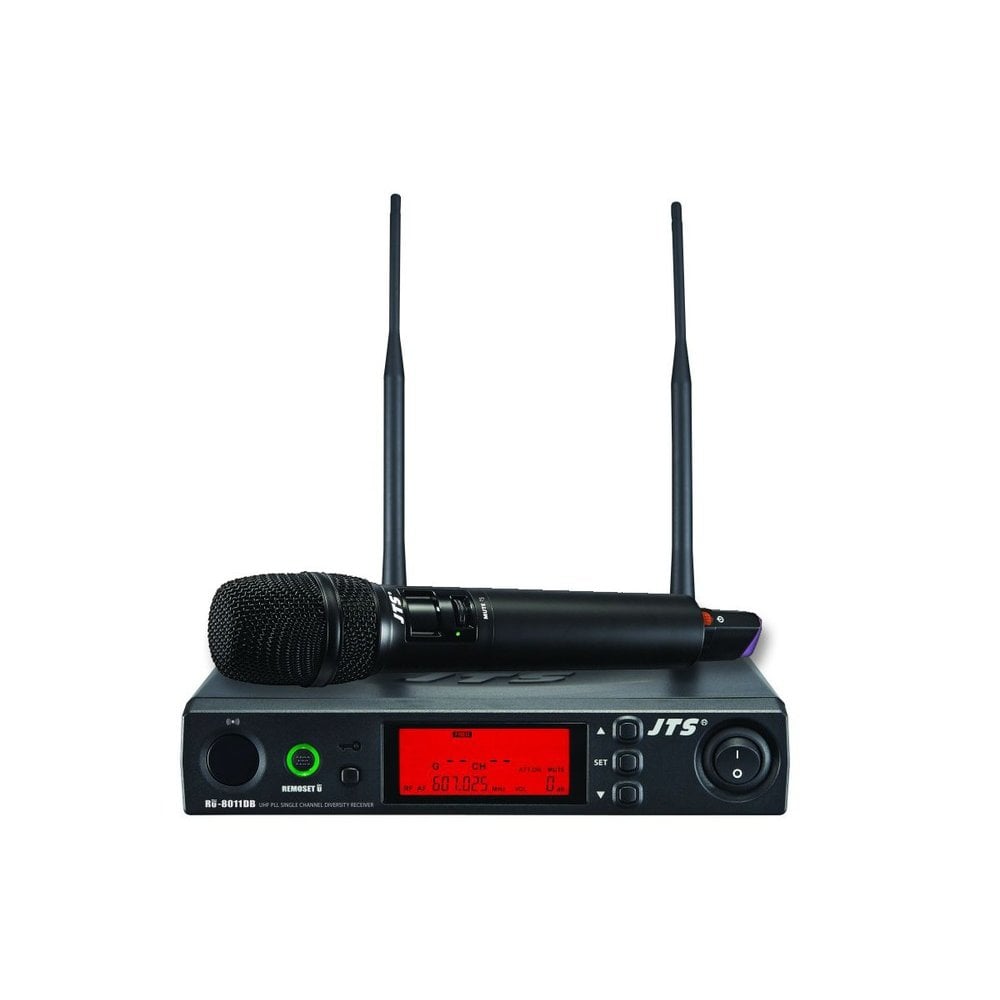

JTS RU-8011DB RU-G3TH Single Channel UHF Handheld Wireless System

Code: RU-8011DB
  • £275.00
Item in Stock   |   Next Day Delivery | Collect in store
Loading...

823-865MHz

823-865MHz

The best selling RU-8011DB offers a feature rich solution at a fantastic price. The large LED display shows all of the important information required to guarantee rock solid RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Supplied with a RU-G3TH Condenser transmitter, this is a complete handheld system for the discerning singer.

UHF PLL Single Channel Diversity Handheld Wireless Microphone System with REMOSET and BNC antenna

The RU-8011DB/RU-G3TH is a system of two quality components at a very affordable price.

First we have the RU-8011DB reciever Antenna Diversity UHF PLL Wide-band receiver.

The next part of this amazing  system is the Hand-Held transmitter the RU-G3TH.

KEY FEATURES



RU-8011DB Receiver Features:



*JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.



*6 groups, each with up to 22 compatible preset channels



*1,441 selectable individual frequencies



*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation



*Auto-Scan function



*Pilot tone squelch and noise mute



*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level



*XLR output (balanced.) and 6.3 mm jack output (unbalanced.)



*Removable BNC Antennas



*Half Rack size with optional rack kits available.



*Optional rechargable Station is available (G3CH-2)





Available in CH 38 (606.5-642MHz)  OR  CH 70 (863-865MHz) versions *Please Note only 3 units on CH70 can be used simultaneously*







RU-G3TH Handheld Transmitter Features:



*Phase-locked Loop (PLL) synthesized tuner.



*Powered by 2 x AA batteries.



*Back lit LCD display with channel and battery life indicator, ID number.



*Extended dynamic range and smooth frequency response.



*Noise mute and tone-key squelch.



*Seperate Mute switch and Power button.



*Optional Charger available (G3CH-2)



Available in CH 38(606.5-642MHz)  OR  CH 70 (863-865MHz) versions * Please Note  only 3 units on CH70 can be used simultaneously*



Frequency Preparation: PLL Synthesized Control

S/N Ratio: >105dB(A)

Squelch: Pilot Tone & Noise Mute

Output Connector: 1x independent balanced XLR and 1x 6.3mm unbalanced jack

Frequency Setting: REMOSET U

Receiving Mode: Antenna Diversity

Bandwidth: 2 MHz (863-865MHz) or 36 MHz (606.5-642 MHz)

Antenna Type: BNC Socket

Power Supply: DC12~15V/300mA

Frequency Range: 863-865MHz or 606.5-642MHz

Handheld Capsule: Dynamic
