The dual channel version of our best seller RU-8011DB offer 2 independent channels into a half rack receiver. Superb space saver without compromising on audio or RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removeable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. Supplied with 2 x RU-G3TH condenser handheld transmitters it offers a complete solution where 2 presenter sytems are needed.
UHF PLL Dual Channel Diversity Handheld Wireless Microphone System with REMOSET and BNC antenna

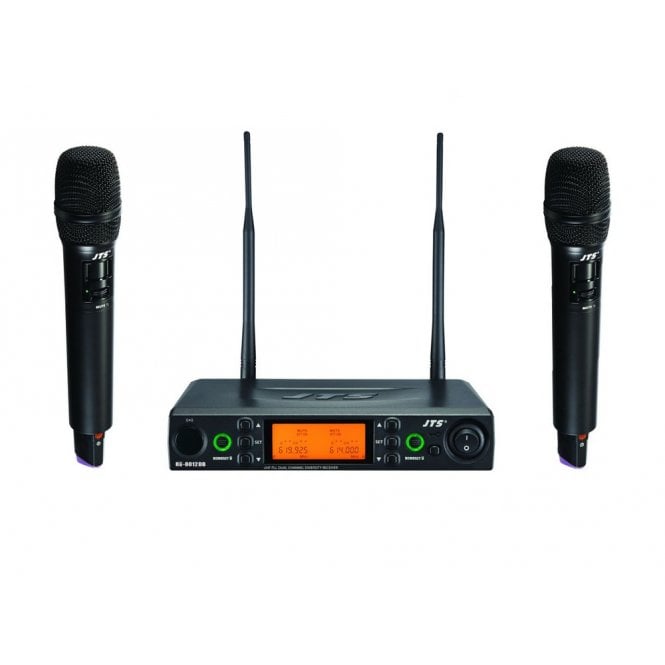

RU-8012DB/RU-G3TH is a Dual reciever and supplied with two High Quality Hand Held transmitter Microphones
The system is made up of the Dual RU-8012DB reciever Antenna Diversity UHF PLL Wide-band receiver and TWO RU-G3TH Hand-Held transmitter Microphones.
*JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.
*6 groups, each with up to 22 compatible preset channels
*1,441 selectable individual frequencies
*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
*Pilot tone squelch and noise mute
*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
*2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)
*Removable BNC Antennas
*Half Rack size with optional rack kits available.
*Optional rechargable Station with rechargable batteries is available (G3CH-2)
S/N Ratio: >105dB(A)
Squelch: Pilot Tone & Noise Mute
Output Connector: 2x independent balanced XLR and 2x 6.3mm unbalanced jack
Frequency Setting: Ultrasonic / REMOSET (Transmit)
Receiving Mode: Antenna Diversity
Bandwidth: 2MHz (863-865MHz) or 36 MHz (606.5-642MHz)
Antenna Type: BNC
Power Supply: DC12~15V/500mA
Frequency Range: 863-865MHz or 606.5-642MHz
Handheld Capsule: Dynamic
