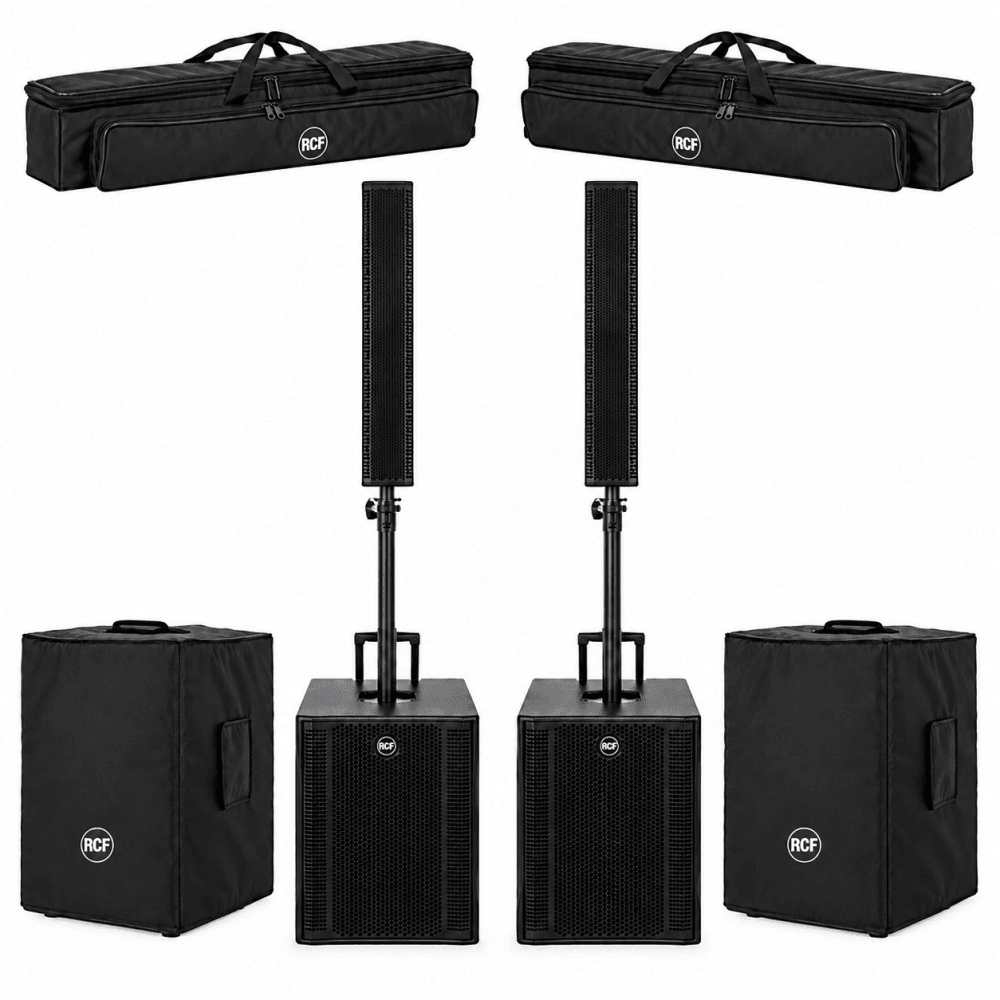

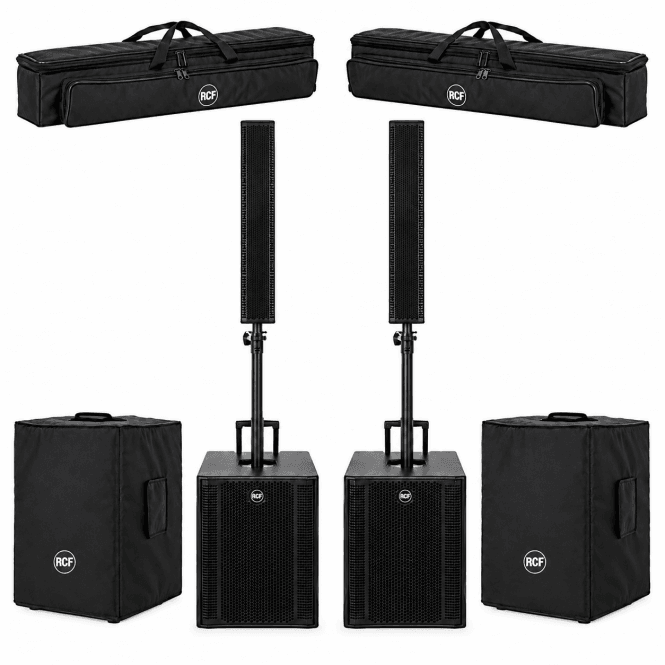

THE BUNDLE CONTAINS 2 X EVOX 12 SPEAKER SYSTEMS WITH COVER SETS

EVOX 12 is the most powerful line source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high-performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

1400 Watt

130 dB max SPL

40 Hz 20 kHz frequency response

15" Woofer

8 x 4" neodymium full-range woofer

90° x 30° slightly tilted pattern control

Innovative DSP processing

PolePowerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight mountable, easy set-up and transportation

Superior transducers

High frequencies

The ultra-compact full-range 4” drivers are capable of handling extremely high SPL and power. The top column features 8 drivers.

Low frequencies

The high excursion 15” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX 12 array design features constant horizontal directivity coverage of 90° x 30°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array.

Ready to play in a few simple steps

Portability

With 3 simple steps, the EVOX 12 system is all set and ready to play! EVOX 12 system is designed to be easily transported and quickly set up. All the components – top column, sub, pole and cables –come in one package and fit in the optional transportation covers.

Mounting

The top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated in two single parts in order to place it on the transportation bag.

Play!

Carrying and mounting your audio system has never been so quick!

Acoustical Specifications
Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°
Fullrange: 8x4.0", 1.0"v.c.
Woofer: 15", 3.0" v.c.
Input/Output Section
Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu
Processor Section
Crossover frequencies: 180 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ
Amplifier Specifications
Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
Cooling: Convection
Connections: VDE connector
Cabinet
Cabinet Material: Baltic birch plywood
Handles: 2 side, 1 top
Pole Mount/Cap: Yes
Colour: black
Physical & Dimensions
Height: 2220mm
Width: 410mm
Depth: 560mm
Weight: 36.4kg
