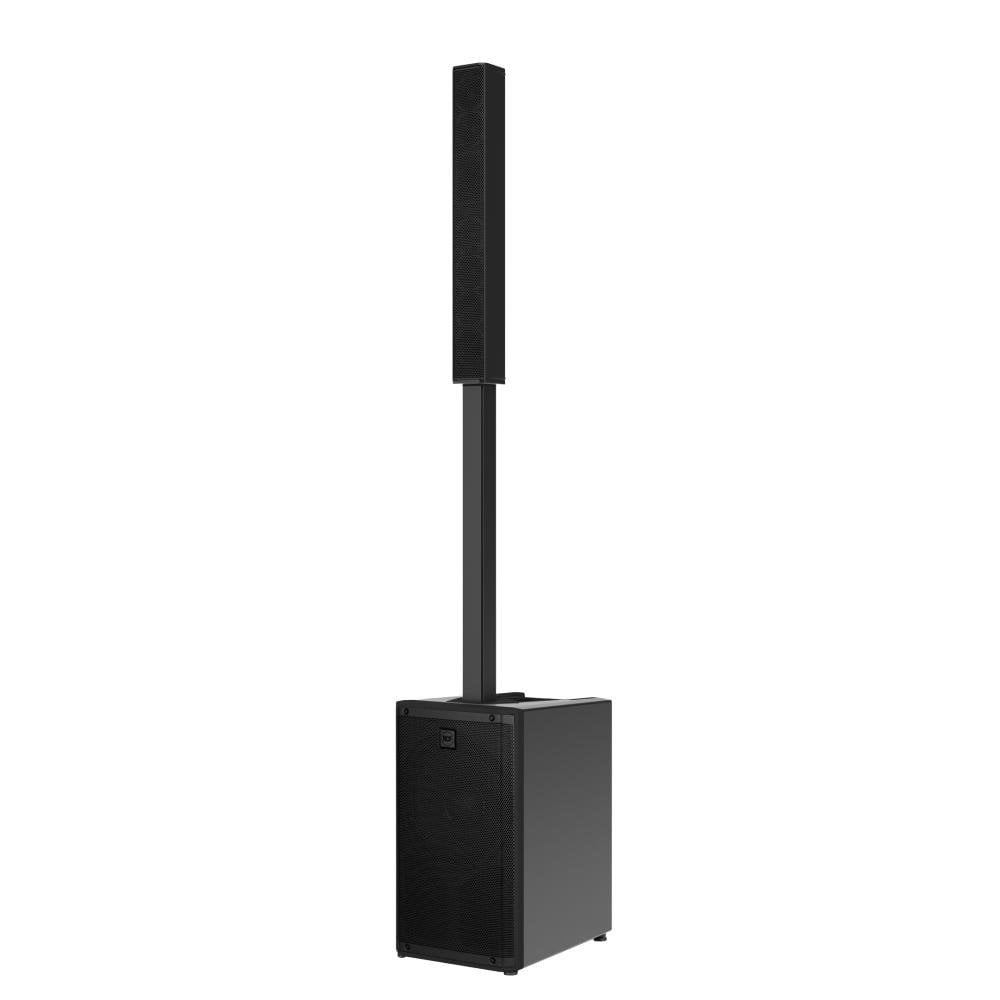

The EVOX JMIX9 is a three-way active portable PA system that integrates a powerful 8-channel stereo digital mixer directly into the design. Featuring a full-colour touchscreen, rotary encoders, Bluetooth® audio streaming, and complete remote control capability, it combines the proven output of the J9 with advanced digital mixing, flexible signal routing, and wireless operation for end-to-end professional control.
Sound is delivered via a 1.75” compression driver mounted on a 120° × 40° True Resistive Waveguide for consistent, wide-area coverage. Six 3” full-range transducers handle detailed midrange reproduction, while a high-output 12” bass-reflex woofer provides deep, well-defined low frequencies. Driven by a 2100 W Class-D amplifier, the system achieves up to 130 dB maximum SPL.
Connectivity includes combo mic/line inputs, stereo and auxiliary outputs, onboard EQ and reverb, phantom power, and Bluetooth audio playback. Every function can be managed directly from the integrated touchscreen or remotely via the JMixRemote app.
Compression Driver: 1 x 0.75 inch neo, 1.75 inch voice coil
Full-Range: 6 x 3.0 inch neo, 1.0 inch voice coil
Woofer: 1 x 12 inch, 2.5 inch voice coil
Input / Output
Input Signal: Balanced / unbalanced
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu
Processor
Crossover Frequencies: 200 Hz / 1800 Hz
Protections: Thermal, RMS limiter, soft limiter
Controls: Digital mixer controlled by touch screen and encoders
Signal Processing: 32-bit
A/D - D/A Conversion: 24-bit @ 48.0 kHz
Processing Channels: 8
Dynamic Range: 114 dB
Inputs
Mic Inputs: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB - 36 dB
Input Noise Level: -114 dBu A-weighted
Mic Input Impedance: 3 k?
Low Cut: 20 Hz - 400 Hz
Phantom Power: +48 V
Mono Line Inputs: 4
Mono Line Gain Selection: 0 dB - 36 dB
Line Input Impedance: 10 k?
A/D Dynamic Range: 120 dB
Stereo Line Inputs: 2
Stereo Line Gain Selection: 0 dB - 0 dB
Stereo Line Input Impedance: 24 k?
Outputs
Main Mix Outputs: 1
FX Send: 1
AUX Send: 1
AUX Output: 1
Headphones Output: 1
Main Out Impedance: 150 ?
Main Out Level: 20 dBu
AUX Out Impedance: 150 ?
AUX Out Level: 20 dBu
Headphones Out Impedance: 100 ?
Headphones Out Level: 20 dBm
D/A Dynamic Range: 118 dB
Processing and Effects
Compressors: RCF compressors on MIC/LINE CH1 to CH4
Input Channel EQ: 3-band EQ with high and low shelving, mid peak
Main Output EQ: 8-band EQ with 6 full parametric bands, 1 high shelving and 12 dB/oct high-pass filter on amplifier and main output
AUX 1: Pre/Post selectable
FX: 1 internal effects send
Main Output Types: Mix out, stereo/mono output, AUX out, headphones output
Power
Total Power: 2100 W peak
High Frequencies: 700 W peak
Low Frequencies: 1400 W peak
Cooling: Convection
Power Connections: VDE mains connector
Power Supply: Internal
Electronics
Frequency Response: 20 Hz - 20 Hz
THD+N (20 dB gain, 0 dBu out): 0.003% A-weighted
Physical
Cabinet Material: PP composite
Grille: Steel
Handles: 1 top
Pole Mount / Cap: Quick-fit socket
Colour: Black or white
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 460 mm / 18.11 inches
Weight: 28.8 kg / 63.49 lbs
General
Model: EVOX JMIX9 220-240 V Black
Part Number: 13000930
EAN: 8024530024130
Included: Top speaker padded carrying bag
Standard Compliance: CE compliant
