Heavy duty 2 core speaker cable suitable for 100V line PA speaker installations. Stranded conductors with red and black inner insulation and overall black PVC sheath. Red and black conductors.
CSA 1.15mm²
Strands 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
Dimensions 7.8mmØ
Current 15A max.
Sheath Black
Packed quantity 1 reel
1+ | 6+ | 20+ |
---|---|---|
£15.99 £13.33 | £15.49 £12.91 | £12.99 £10.83 |

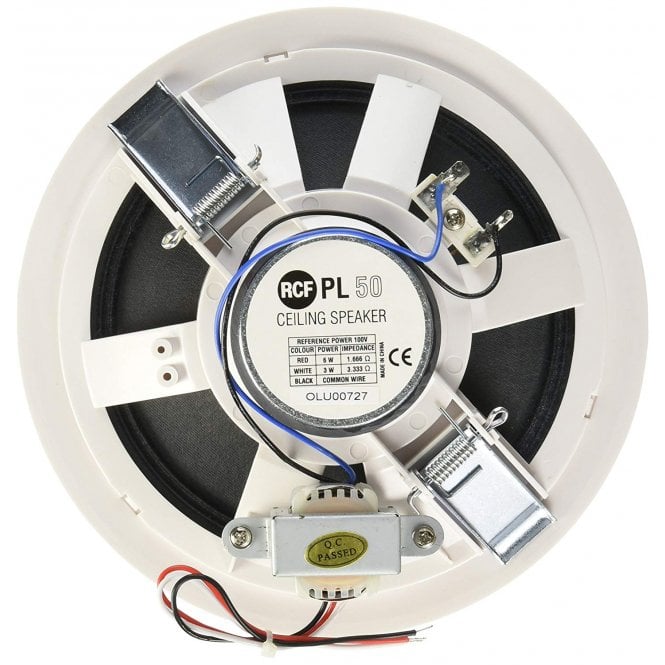

PL 50 is a flush-mount ceiling 6” (dual-cone) loudspeaker. It has an internal transformer that allows direct connection to 100 V constant voltage lines. The transformer has 2 inputs for power tapping: 6 – 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.
For paging and background music
Music power / RMS: 6 / 3 W
6" dual cone wide band loudspeaker
Sound pressure level at music power: 90 dB/1 m
100V
Built-in multi-tapped transformer for 100 constant voltage connection
Body in self-extinguishing plastic UL-94-H-B
Front plastic grille
FREQUENCY RESPONSE (-10DB):100 Hz ÷ 20000 Hz
MAX SPL @ 1M:98 dB
COVERAGE ANGLE:150°
SYSTEM SENSITIVITY:90 dB
POWER HANDLING:6 W RMS
PEAK POWER HANDLING:24 W PEAK
FULLRANGE:6.0''
INPUT CONNECTORS:
Screw Terminals
OUTPUT CONNECTORS:Screw Terminals
CONSTANT VOLTAGE TRANSFORMER:100 V
POWER SELECTION 1 (100 V):6 W - 1667 ohm
POWER SELECTION 2 (100 V):3 W - 3333 ohm
CE MARKING:Yes
CABINET/CASE MATERIAL:Plastic
HARDWARE:Metal
GRILLE:Plastic
COLOR:White
DEPTH:65 mm / 2.56 inches
RECESSED DEPTH:59 mm / 2.32 inches
DIAMETER:186 mm / 7.32 inches
WEIGHT:0.5 kg / 1.1 lbs
