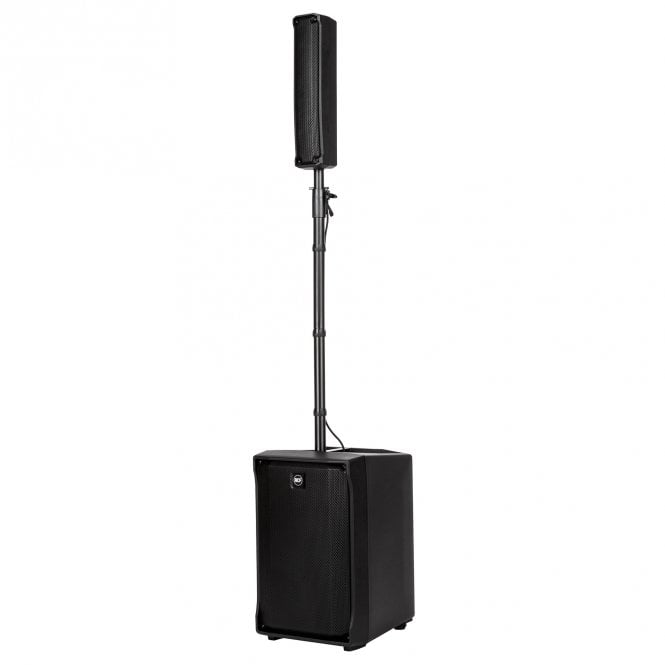

Here we have the highly anticipated RCF Evox j8, the next addition to the already popular EVOX range of speakers from RCF . This system is powered by a 1400watt class-d amplifier system that is built in to the bass bin of the system. The new J8 keeps many of the specifications of the the EVOX8 but the new J8 iis in a plastic cabinet making it a robust unit for life of the road. As with previous models the EVOX J8 packs neatly making a one carry in system. The J8 will be perfect for mobile DJs and entertainers, delivering enough power for small to mid sized venues and as expected brilliant sound quality . Be sure to check our video review here (click) and our blog review here (click)
128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
23,8/52.5 kg/lbs
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 20 Hz
Max SPL:128 dB
Horizontal coverage angle:120°
Vertical coverage angle:30°
Fullrange:8 x 2.0'', 1.0'' v.c
Woofer:12'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XRL, Jack
Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover frequencies:220 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Connections:Convection
CABINET
Cabinet Material:PP Composite
Handles:1 Top
Pole Mount/Cap:Yes
Grille:steel
Colour:Black, White
PHYSICAL SPECIFICATIONS
Height:623/24.53 mm/inch
Width:400/15.75 mm/inch
Depth:460/18.11 mm/inch
Net Weight:23.8/52.47 kg/lbs
