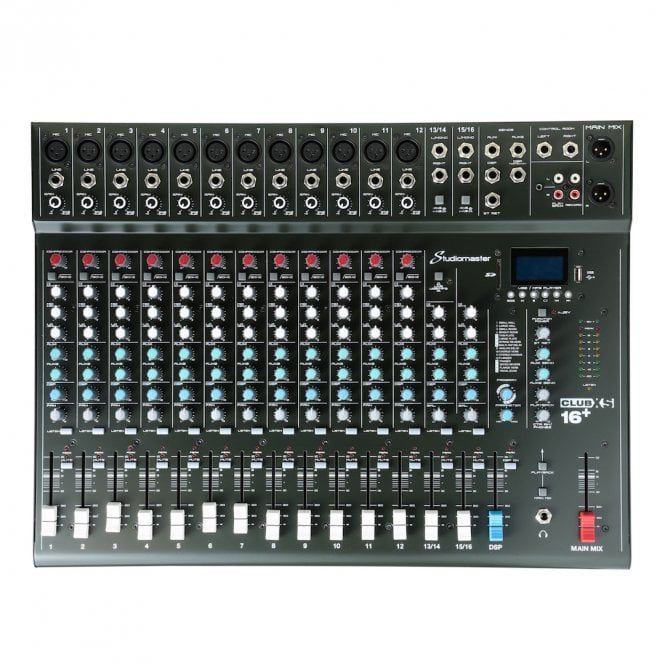

StudioMaster CLUB XS16+ 16 CHANNEL MIXER

Code: clubxs16+
  • £299.00
Item in Stock   |   Next Day Delivery | Collect in store

New for 2020, Club XS+ models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black.


Compact, portable mixing consoles featuring 5 to 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions. 3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.


Ultra compact, light weight, high quality and extremely versatile, the Club XS is the perfect mixer for any live performance and home recording situation .

16 inputs: 12 mic channels, 2 stereo channels

3 Auxiliary busses for monitoring and internal/external effects processing

Professional balanced outputs

High quality microphone pre amps with enhanced compression and gain controls and 3 band EQ on all microphone channels

60mm smooth faders

PFL and Mute control on every channel

16 in built DSP effects

Foot switch socket for DSP on/off control

Bluetooth playback connectivity

USB/SD media player and recorder

Internal power supply

Inputs: 16

Mic Inputs: 12

Stereo Inputs: 2

Mic Gain Range: 6dB to 50dB

Line Gain Range: 10dB to 34dB

EIN:  -100dB

Frequency Responce: 10Hz – 20kHz (+1/-3dB)

THD Mic Channel: <0.1%

Signal to Noise Ratio: 80dB

Output Levels: Max +26dB (Bal), +20dB (unBal)

EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz

USB/SD: MP3 Audio playback

Record: To USB drive or SD card (128kbps mono)

DSP Effects: 16 DSP effects

Power Requirements: 100V – 240V ~

Dimension W*H*D: 525 x 80 x 390 (mm)

Weight: 7.3kg
