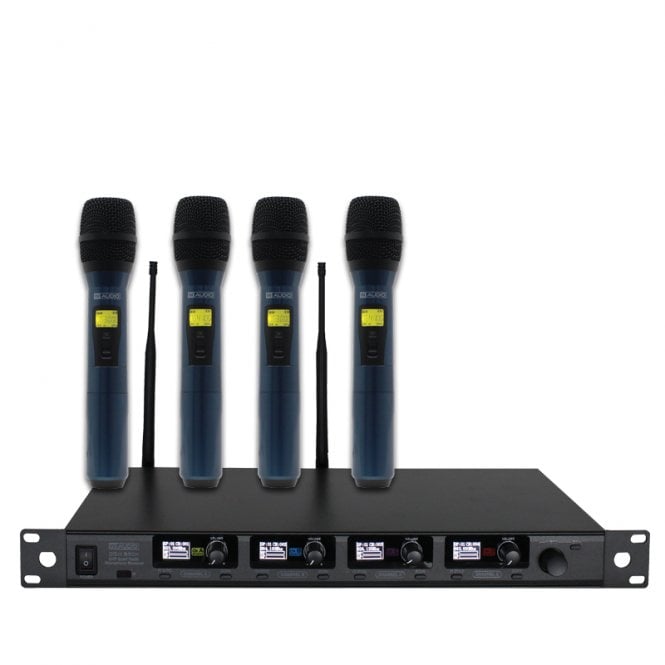

W Audio 800H Quad handheld UHF Radio microphone system.

DQM series wireless microphones are quad UHF handheld systems designed for the professional user and utilises a diversity, full width receiver for the ultimate in RF stability. It has a tuning bandwidth up to 9MHz+2Mhz with 99 selectable frequencies for the 823-832Mhz CH65 and 863-865Mhz CH70 band. These systems offer crystal clear sound reproduction and rock solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.

- UHF band, Phase Lock Loop (PLL) offering stable RF transmission

- Frequency groups and a group of users set their own frequencies and storage, multiple sets of compatible frequency presets

- OLED display offers a wide viewing angle while remaining bright in darkened conditions

- Frequency, Channel, RF and AF signal strength meters

- 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna

- Combined use Jog Dial button operation for fast menu navigation

- Integrated antenna splitter for reduced RF interference

- Balanced XLR output for each channel plus unbalanced mixed output

- Automatic frequency SCAN function

- IR infrared frequency synchronisation via infrared interface

- Noise locking

- Mute circuitry for reduced noise

- Flat frequency response: 50Hz-16KHz

- Dynamic, cardioid handheld microphone capsule

- 1U full width rack mount receiver

NOTE:

The DQM 600/800 system is shipped with four handheld transmitters. The receiver in this system features a quad

channel receiver allowing four handheld microphones to be used simultaneously, an additional belt pack kit maybe

purchased if required to be used in place of the handheld transmitters. Each receiver channel in this system may only

be used with one transmitter at any one time. If the user attempts to power on, and use two transmitters on the same

receiver frequency the system will malfunction and not operate correctly as one transmitter will cut out the RF Radio

signal to the second transmitter.

Available in two frequency ranges, the DQM 800 series is for use in the 823-832Mhz CH65 and 863-865Mhz CH70

band (CH70 is license free in the UK) while the DQM 600 series is for use in the 606-614Mhz CH38 band. To operate

microphones in the 823-832Mhz CH65 or 606-614Mhz CH38 band the user must obtain a license from the relevant

authorities in the UK before using the product. Outside of the UK, the user must clarify the frequencies with their local

government office responsible for radio microphone frequencies.
