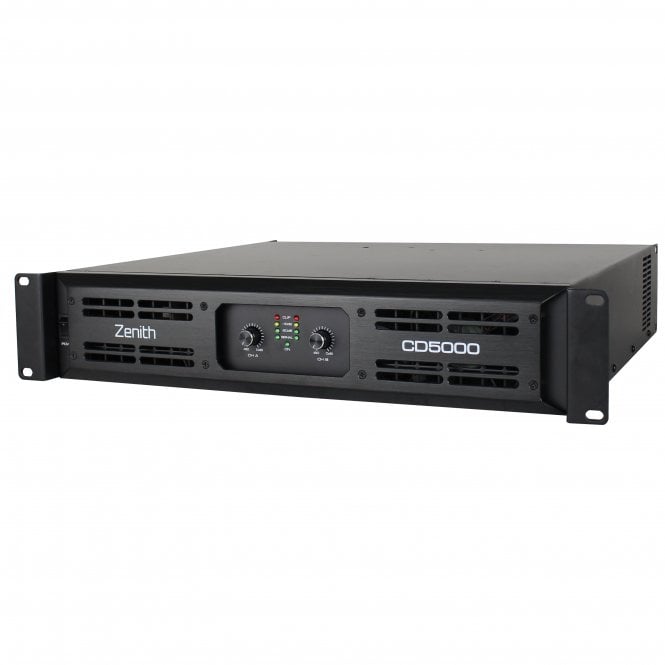

The CD series feature high power, outstanding sound quality and superior stability for a wide range of installed sound systems as well as portable live sound applications. Models include two or four channel variants with RMS wattages of up to 8000W, featuring class D technology in a compact 2U package. Automatic clip limiting along with high efficiency tunnel cooling and DC fans ensure reliability time after time.
- Power output @ 8?: 2 x 1000Wrms
- Power output @ 4?: 2 x 1700Wrms
- Power output @ 2?: 2 x 2500Wrms
- Power output bridge @ 8?: 1 x 3400Wrms
- Power output bridge @ 4?: 1 x 5000Wrms
- Frequency response: 20Hz to 20kHz
- Input sensitivity: 1.2V, 32dB or 26dB
- Damping factor: 200
- Slew rate: 22V/uS
- Min. Load impedance (Stereo): 2?
- Min. Load impedance (Bridge): 4?
- Protection circuits: Soft start, limit, thermal, short circuit, overload, DC fault protection and AC power supply fuse
- LED indicators: Power, active, signal and clip
- Input connections: 2 x XLR sockets, 1 x powerCON mains input
- Output connections: 2 x speakON connectors and 2 pairs of binding posts
- Additional features: Switchable stereo, parallel and bridge and switchable low cut filters (30Hz, 50Hz and OFF)
